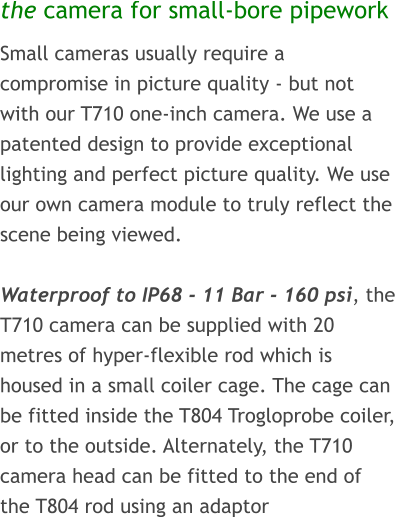

the camera for small-bore pipework

Small cameras usually require a compromise in picture quality - but not with our T710 one-inch camera. We use a patented design to provide exceptional lighting and perfect picture quality. We use our own camera module to truly reflect the scene being viewed. Waterproof to IP68 - 11 Bar - 160 psi, the T710 camera can be supplied with 20 metres of hyper-flexible rod which is housed in a small coiler cage. The cage can be fitted inside the T804 Trogloprobe coiler, or to the outside. Alternately, the T710 camera head can be fitted to the end of the T804 rod.

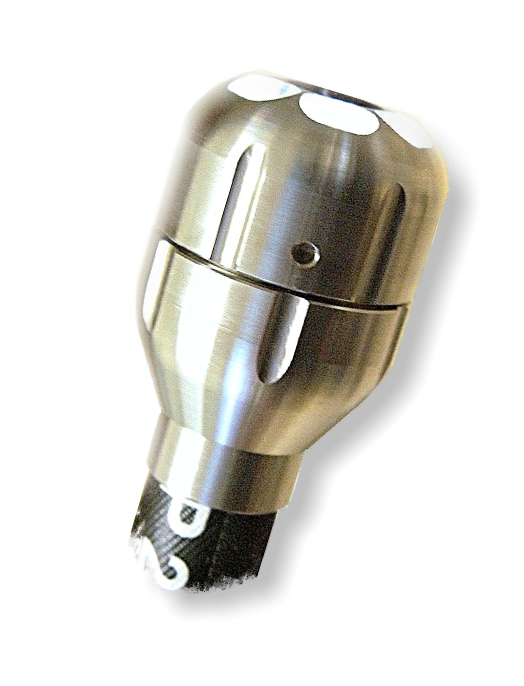

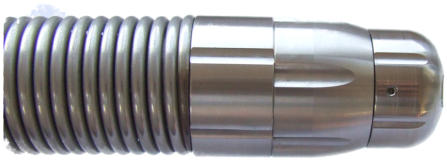

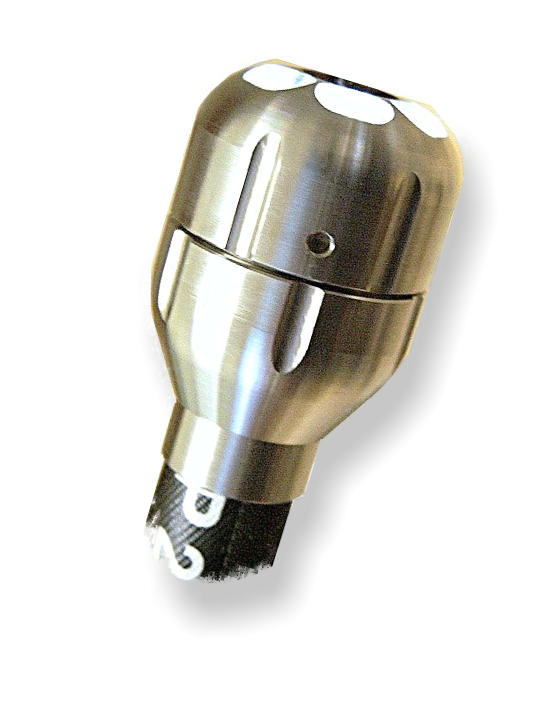

T710 one-inch camera

Designed for small-bore pipework, the T710 is highly flexible but retains perfect picture quality.

T710 one-inch camera features

Waterproof to IP68 - 11 Bar - 160 psi - safe for swimming pool use Stainless Steel construction for robustness Fits in 1 1/4” (30mm) pipework Custom lighting for best picture quality Standard system includes 20M hyper-flexible rod and ball-skid Can be fitted to the T804 Trogloprobe system Serviceable construction (not potted) Troglotech manufactures the camera module for true reproduction

technical information.

the T710 camera

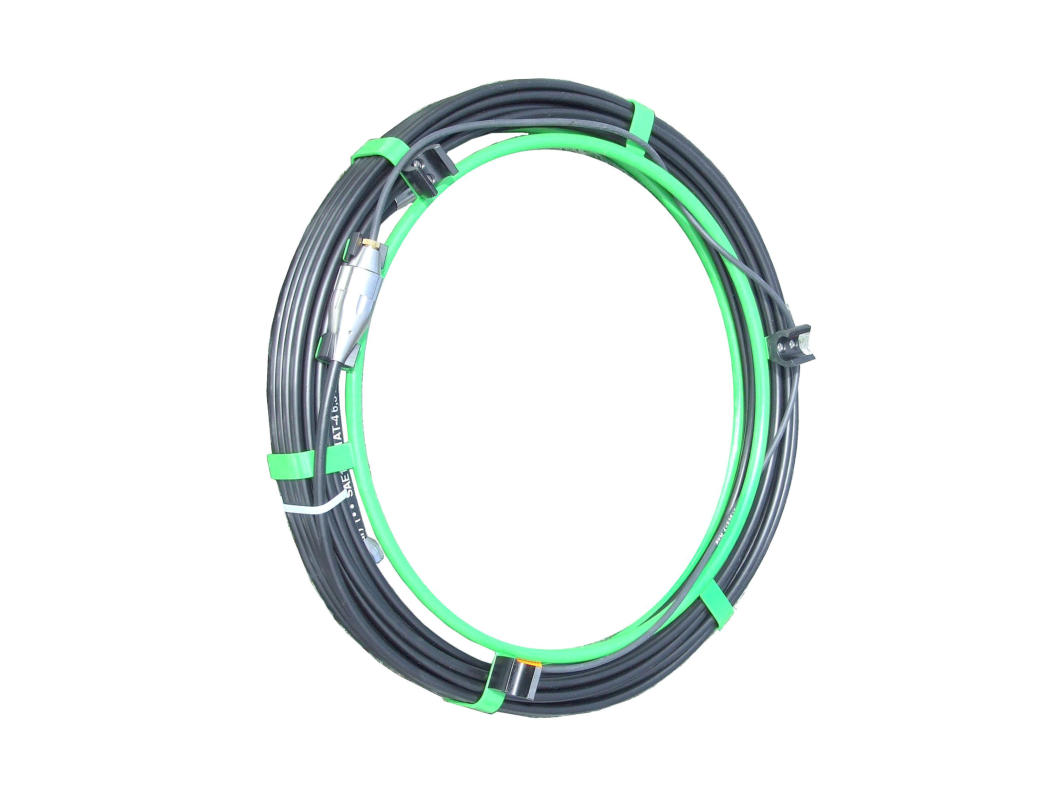

Fits in pipes as small as 30mm (1 1/4”) Supplied with 20 metres of hyper-flexible rod Long lead-in hose for easy navigation on multiple 90-degree bends High Definition, 540 lines pph digital sensor module designed by Troglotech Waterproof to IP68 - 11 Bar - 160 psi Digital Clarity - produces a sharp, noise-free picture in low-light conditions Highly robust with Stainless-steel construction Sapphire windows Patented LED design - equivalent to 20W Halogen Low-energy design for long mission time Can be fitted to all Trogloprobe T804 units

manuals specifications and brochures in pdf format.

Home Products Accessories Distributors Contact Us Help! faq News Downloads Video Gallery About Us T710 Installation Instructions T710 one-inch Camera Brochure T710 one-inch Camera Specifications T710 Specification - Printer Friendly

video

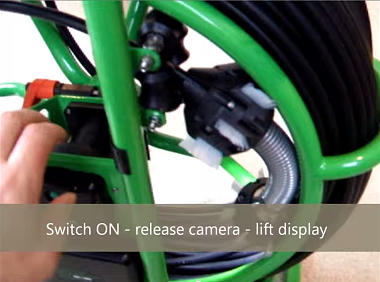

start of day routine

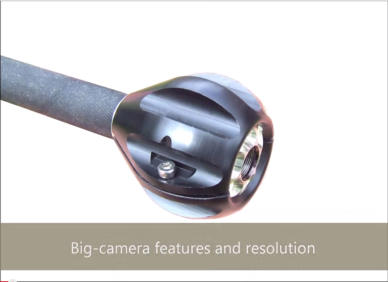

introduction

Ultimate underground technology

Ultimate underground technology      Unit 1. 3 Penns Road, Petersfield, Hampshire GU32 2EW     United Kingdom       +44(0)1730 711240
the camera for small-bore pipework Small cameras usually require a compromise in picture quality - but not with our T710 one-inch camera. We use a patented design to provide exceptional lighting and perfect picture quality. We use our own camera module to truly reflect the scene being viewed.  Waterproof to IP68 - 11 Bar - 160 psi, the T710 camera can be supplied with 20 metres of hyper-flexible rod which is housed in a small coiler cage. The cage can be fitted inside the T804 Trogloprobe coiler, or to the outside. Alternately, the T710 camera head can be fitted to the end of the T804 rod using an adaptor

T710 one-inch camera

Designed for small-bore pipework, the T710 is highly flexible but retains perfect picture quality.
Navigation

T710 one-inch camera features

Waterproof to IP68 - safe for swimming pool use Stainless Steel construction for robustness Fits in 1 1/4” (30mm) pipework Custom lighting for best picture quality Standard system includes 20M hyper-flexible rod and ball-skid Can be fitted to the T804 Trogloprobe system Serviceable construction (not potted) Troglotech manufactures the camera module for true reproduction

technical information.

manuals specifications

and brochures in pdf

format.

the T710 camera

Fits in pipes as small as 30mm (1 1/4”) Supplied with 20 metres of hyper-flexible rod Long lead-in hose for easy navigation on multiple 90-degree bends High Definition, 540 lines pph digital sensor module designed by Troglotech Waterproof to IP68 - 11 Bar - 160 psi Digital Clarity - produces a sharp, noise- free picture in low-light conditions Highly robust with Stainless-steel construction Sapphire windows Patented LED design - equivalent to 20W Halogen Low-energy design for long mission time Can be fitted to all Trogloprobe T804 units
T710 Installation Instructions T710 one-inch Camera Brochure T710 one-inch Camera Specifications T710 Specification - Printer Friendly

video

start of day routine

introduction

Ultimate underground technology      Unit 1. 3 Penns Road, Petersfield, Hampshire GU32 2EW     United Kingdom       +44(0)1730 711240

Ultimate underground technology

the camera for small-bore pipework

Small cameras usually require a compromise in picture quality - but not with our T710 one-inch camera. We use a patented design to provide exceptional lighting and perfect picture quality. We use our own camera module to truly reflect the scene being viewed. Waterproof to IP68 - 11 Bar - 160 psi, the T710 camera can be supplied with 20 metres of hyper- flexible rod which is housed in a small coiler cage. The cage can be fitted inside the T804 Trogloprobe coiler, or to the outside. Alternately, the T710 camera head can be fitted to the end of the T804 rod using an adaptor

T710 one-inch camera

Designed for small-bore pipework, the T710 is highly flexible but retains perfect picture quality.

T710 one-inch camera features

Waterproof to IP68 - 11 Bar - 160 psi - safe for swimming pool use Stainless Steel construction for robustness Fits in 1 1/4” (30mm) pipework Custom lighting for best picture quality Standard system includes 20M hyper-flexible rod and ball-skid Can be fitted to the T804 Trogloprobe system Serviceable construction (not potted) Troglotech manufactures the camera module for true reproduction

technical information.

the T710 camera

Fits in pipes as small as 30mm (1 1/4”) Supplied with 20 metres of hyper-flexible rod Long lead-in hose for easy navigation on multiple 90-degree bends High Definition, 540 lines pph digital sensor module designed by Troglotech Waterproof to IP68 - 11 Bar - 160 psi Digital Clarity - produces a sharp, noise-free picture in low-light conditions Highly robust with Stainless-steel construction Sapphire windows Patented LED design - equivalent to 20W Halogen Low-energy design for long mission time Can be fitted to all Trogloprobe T804 units

manuals specifications and brochures in pdf format.
