T80X Digital Cameras
Troglotech pride themselves on making the worlds most robust camera with many hundreds in operation throughout the world. Initially the T800 and T801 cameras were utilised on Pearpoint TM systems and Gatorcam TM systems, now these cameras are standard fitment to our T804 pushrod system.
The T80x cameras use the latest digital electronics to produce a reliable high-resolution picture and a passive auto-levelling system that ensures that the picture is always upright. With over 40 years experience in designing high-end CCTV inspection cameras you can be sure that your Troglotech camera will perform.
Ruggedness: Full stainless steel construction including a heavy duty front guard plus internal shock-mounting is the starting point to reliability. The use of fluid-damped passive auto-uprighting removes the unreliability of electronic uprighting but gives all the benefits of a steady, upright image.
Extreme Lighting: The T80x range of cameras use high-intensity 6th generation custom LED lighting, giving more than twice the light of existing camera designs. More light gives better images, and allows the Troglotech cameras to operate in larger pipe diameters, up to 12" (300mm) is possible in certain materials.
Independent Lighting Section: Misting is the bane of camera users, Troglotech have made the eradication of this flaw in existing designs one of their primary challenges. The solution was the use of two separate sealed chambers within the camera. The camera section is hermetically sealed, dehumidified during camera construction and utilises heat piped from the lighting section to raise the temperature of the front window. The design has proven to be successful in the field.
The Troglotech Camera has proven to be the leader in the field as a replacement camera for existing systems, it can now form the basis of a complete Troglotech digital inspection system.
The design remit was simple: produce a camera that allows the user to carry on working in all conditions. A camera that does not mist up, that does not fail, a camera that earns the customer money rather then spending time in the workshop.
Compatibility:
Troglotech cameras are fully compatible with:
Pearpoint ELS (TM) system (replaces P370, P372 and P382)
Pearpoint Flexiprobe (TM) system (using Troglotech Adaptor)
Pearpoint P571 Flexicoiler (TM) system (using Troglotech Adaptor)
Gatorcam (TM) Push-Rod systems
Insight Vision (TM) Push-Rod systems
Troglotech cameras are compatible with other CCTV systems, please call for more information. We can also supply a control PCB that allows the use of Troglotech cameras with jetter and cutter systems.

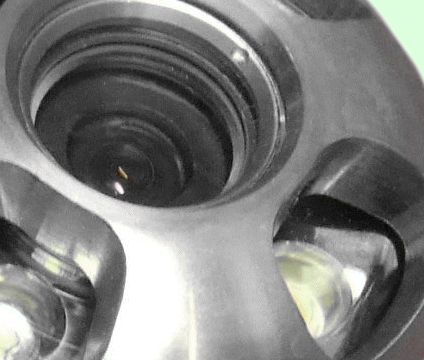

Robust steel guard

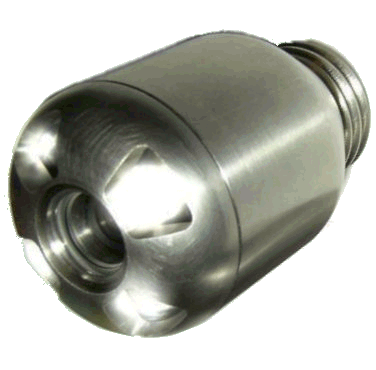

T801 camera
T800 camera
T800 and T801Brochure |
|||
|
T800 operating instructions |
This camera is used
on the T804 Digital System. |
||
|
T801 operating instructions |
T800 and T801 Camera Brochure This camera fits Radiodetection Gatorcam (TM) system |
||
|
T808 operating instructions |
This camera fits
Alliance-Vision system
|
T710 Digital Camera and 20M Rod
Troglotech have produced the worlds most advanced 1" camera. We have utilised the very latest in CMOS sensor and LED technology to provide a camera that out-performs all 1" cameras and most larger cameras. The camera is supplied with 20M (65 feet) of super-flexible rod, contained in a coiler cage that fits inside the T804 coiler. This extends the T804 rod length to 80M (262 feet).
This allows both the T800 and T710 cameras to be used on the same system and provides the greatest flexibility. The T710 1" camera can be used on internal domestic waste pipework to a minimum of 1.25". However, the performance of the camera will provide exceptional pictures in 6" and larger pipes depending on material.
Ruggedness: The T710 follows the tradition of our T80x range with full stainless steel construction including a heavy duty front guard and internal shock-mounting.
Extreme Lighting: The T710 camera uses high-intensity 6th generation LED lighting, giving more light output than all current 1" cameras and most much larger cameras. The light output is equivalent to a 20W tungsten lamp but produces one-tenth of the heat. What heat is produced is piped to the Quartz window to eliminate misting.
Flexibility: Troglotech has developed a new 6mm rod as part of the T710 camera system. The rod has the ability to negotiate tight bends in domestic systems but retains enough rigidity to be pushed easily.
T710 1" camera
T710 fitted with Ball-skid
Double coiler cage
